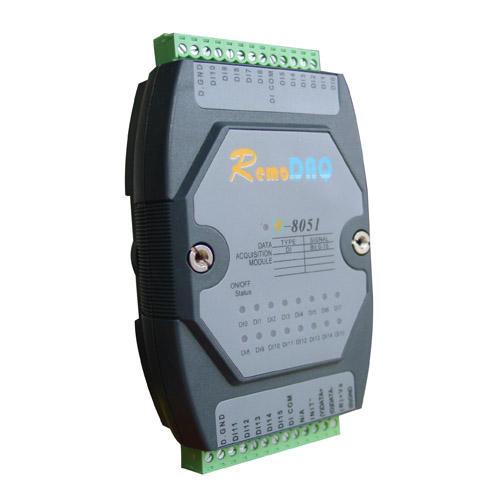

R-8051

share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
16-channel Isolated Digital Input Module

Main Features
- Input: 16-channel
- Input Voltage: 50V (Maximum)
- Input Voltage Level:
Dry Contact: Logic Level 0:-OFF (close to GND); Logic Level 1:-ON;
Wet Contact: Logic Level 0: +3V (Maximum); Logic Level 1: +10V to 50V;
- Isolation Voltage: 3000VDC
- Power Consumption: 1W@24Vdc
- Support ASCII and Modbus protocol

Product OverviewSpecificationOrdering Information

RemoDAQ8051 is a 16 channel DI module with 3000Vdcoptical isolation. It is suitable for critical applications.

RemoDAQ8051 accepts 10~50V voltage to fit others digitalvoltage signals such as 12V, 24V and 48V. Besides users can read the currentstatus from the LED indicators on the front panel.


Input   channel

16

ESD

2000Vdc

Opto-isolated   response time

25μs

LED   state

ON or   OFF

Dry or   Wet connect digit input

Over-voltage   protect

70Vdc

Isolation   voltage

3000VDC

Power   supply

10~30VDC

Power   consumption

1.2W

Environment

Operating Temperature：-20 ~ 70° C

Humidity：5 ~ 95%,   non-condensing


R-8051

16-channel Isolated Digital Input Module
