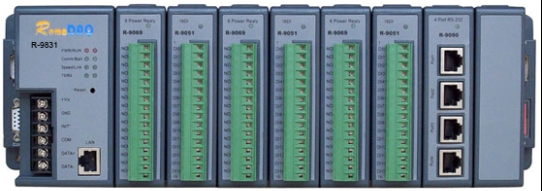

8 slots Ethernet soft logic controller

Main Features:
• 10/100/1000Base-T Ethernet interface
• Self-built Modbus /RTU Server
• Support Modbus /TCP Client
• Support Modbus /RTU Master and Slave Station
• Linux operating system, C language programming
• 8 slots for use with I/O, Basic unit can support up to 64/128 of the I/O points
• Support for Al/AO/Dl/DO counter function block
• Through a serial port extension 32 extension units, Each extension unit can support
64/128 of the I/O points

Product OverviewSpecificationOrdering Information

R-9831is a soft logic controller with Ethernet interface.

It also provides Ethernetfunction, including the Modbus/TCP Server,

Modbus/TCP Client and Ethernet. Then users can facilitate rapid completion

based on Ethernet architectureprogramming.


Specifications

CPU

Atmel SAMA5D36 Cortex a5, 536MHz

Storage

512M Nand Flash，256KB SRAM (Save   the data one month)

Operating system

Linux

Real-time clock

enabled

Built-in watchdog

enabled

COM1

RS-232/485

COM2

RS-485

COM3

RS-232

COM4

RS-232/485

Communication   Protocol

Modbus/RTU and Modbus/TCP

I/O capacity

8 slots

Status display

Power, CPU, Communication and battery

CPU power consumption

3.0W

Field bus

CAN field, 2 interface, Support   2.0A/2.0B Protocol

Isolation protection

·power input

3000 VDC

·communication

2500 VDC(except COM3)

Ethernet

1*10/100/1000Mbps,

1*10/100Mbps

VGA display

Resolution

1024*768

Extension

Through 485   extensible 32 slave units of 8 slots

Software support

Isagraf Soft logic   programming

C language programming

Power

Unconditioned +10～+30VDC

Reverse power protection

Mechanical features

Coating

KJW   plastics, with install accessories

Plug-in   screw

terminator

Plug-in screw   terminator: diameter of lead 0.05mm2   to 2.5mm2, 1-＃12 or 2-＃14 to ＃22AWG

Environment

Operating temp

-40～85℃

Storage temp

-40～85℃

Humidity

5～95 ％non-condensing






RemoDAQ-9831

8 slots Ethernet soft logic controller
