RS-485 Base Sub Controller

Main Features
- Easy to install and networking RS-485 communication
- Each system has 4 or 8 slot, Max can support 128 I/O point
- Support various software including Windows DLL driver, OCX driver, OPC server and HMI/SCAPA software driver.
- With surge protection, avoid system to be damaged by dangerous voltage and power transients
- Can use one R-8510 repeater to expand network, each system can have Max 256 R-9000 unit, max transmit distance can reach 10km.
Product OverviewSpecificationOrdering Information

R-9410 and R-9810 system use EIA RS 485communication protocol.

This protocol is the standard which has been widely used in industrial field balancing, two-way transmit.

RS485 has the advantageof further transmitting distance,

higher transmitting speed, very suitable forindustrial application.


Specification:

-   Processor:

   CPU 16 Micro processor

    I/O model capacity: 4or 8

    Built-in watchdog

    Power consumption: 1.0W(R-9410)4.0W(R-9810)

-   Isolation protection

    Communication；2500VDC(R-9410)

   Isolation:        3000VDC(R-9810)

    Isolation protection:communication power 3000VDC

    I/O model isolation：3000VDC

-   Diagnosis:

    Status display: Power, CPU<communication

    Self-test: self-test when poweron

    Software diagnosis: enabled

-   Communication:

    Network: RS-232or RS 485(2-wire)to mainframe

    Rate (bps): 1200, 2400, 4800,9600, 19.2K, 38.4K, 57.6K and 15.2Kbps

    Max communicate distance: 4000feet（1.2km）

    Command format: ASCIIcommand/response protocol

    Reliability check: with checksumcommunication error check

    Asynchronous communication dataformat: 1 start bit, 8 data bit, 1 stop bit, with no check

    Max vertices: each PC serial portcan connect 256 sections system

-   Power requirement

    Unconditioned: +10-30VDC

    Reverse power protection

    Power protection: suppresscurrent input transient

-   Mechanicalfeatures:

    Shell: KJW plastics, with installaccessories

    Plug-in screw terminator:diameter of lead 0.05mm2 to 2.5mm2, 1-＃12 or 2-＃14 to ＃22AWG

-   Environment:

    Operating temp –10℃~+70℃

    Storage temp –10℃~+85℃
    Humidity: 5~95% non-condensing

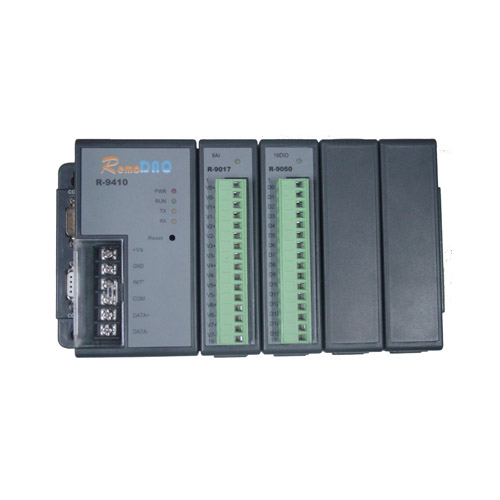

R-9410

RS485 (4 slots) distributed data acquisition controlsystem.
R-9810

RS485 (8 slots) distributed data acquisition controlsystem.
