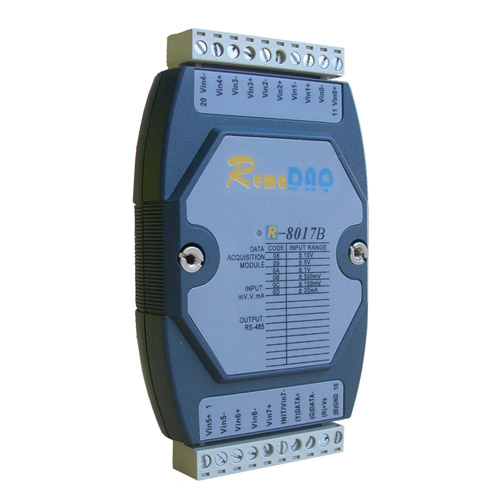

R-8017B

share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
8-channel Analog Input Module with Modbus
(Channel independent configuration)

Main Features

- 16-bit resolution
- Channel: 8-channel different analog inputs
- Channel independent configuration
- Input type: mV, V, mA
- Range: ±150mV, ±500mV, ±1V, ±5V, ±10V, ±20mA, 4-20mA
- Isolated Voltage: 3000VDC
- Over Voltage protection: ±35V
- Sampling: 10times/S
- Input Impedance: 20M Ohms
- Supports Modbus/RTU Protocol and ASCII
Product OverviewSpecificationOrdering Information

RemoDAQ-8017B

it providesprogrammable input ranges in all channels,

its features are given as following：

l 3000VDC Isolated

l Software calibration

l 24-bits ADC to provide excellent accuracy.


l   AnalogInput Channels：8 differential, or6 differential,

   2 single-ended input (jumper tochoose)

l   Inputtype：mV, V and mA

l   Inputrange：±150mV, ±500mV, ±1V, ±5V, ±10V, ±20mA,4-20mA

l   Over-voltage protection：±35V

l   Conversionrate：10 times/sec

l   Bandwidth：13.1Hz

l   Accuracy：±0.1%

l   Inputimpedance：20MOhms

l   Zerodrift：±6µV/°C

l   Spandrift：±25ppm/°C

l   CMR(50/60Hz)：92dB

l   Watchdogtimer：Yes

l   Powerconsumption：1.2W/24VDC

l   Isolationvoltage：3000VDC

l   Operating Temperature：-20 ~ 70° C

      Humidity：5 ~ 90%, non-condensing



R-8017B

8-channel Analog InputModule with Modbus(Channel independent configuration)
